HF Welding Machines
Watad Al Khaima supplies advanced HF welding machines for PVC fabric processing. These machines deliver precise, strong welds for tents, tarpaulins, and industrial fabric applications across the Middle East.
Used in combination with FEP welding film, our HF welding machines ensure seam consistency, durability, and high-quality finishes. They are compatible with all standard PVC fabrics, including PVC rolls, and support industrial-scale production efficiently.
Our HF welding machines work well alongside keder systems and aluminum profiles to create reliable tensile structures. Watad Al Khaima provides complete technical support to help fabricators achieve professional results every time.



Ask for quote
Share your project requirements with Watad Al Khaima, and our expert team will provide a customized quotation.
Weld M
Weld M with solt
Weld-750

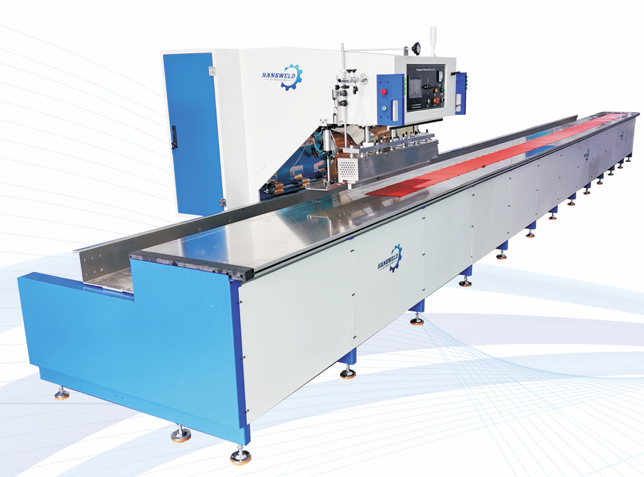

Weld M
| POWER Range | 10KW | 15KW | 25KW |
|---|---|---|---|
| Input Power | 15KVA | 25KVA | 35KVA |
| Suitable Welding Area | 250CM² | 400CM² | 600CM² |
| Oscillation Tube | E3069 | 8T85RB | 8T25RA |
| Power Supply | 3P ~ 380V × 50Hz | ||
| Working Frequency | 27.12Mhz | ||
| Rectifier | Silicon Diode | ||
| Drive Mode | Pneumatic | ||
| Arc Suppressor | High Sensibility PL–5557 | ||
| Suitable Material | PVC or any fabric containing PVC | ||
| Cylinder Working Stroke | 150mm (customization offered) | ||
| Welding Time | 0–30 S adjustable (customization offered) | ||
Weld M with solt

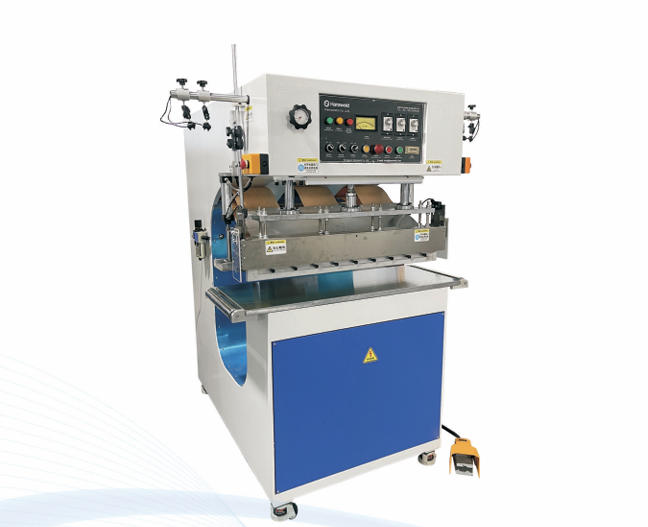

Weld-750
| POWER Range | 15KW | 25KW |
|---|---|---|
| Input Power | 25KVA | 35KVA |
| Suitable Welding Area | 400CM² | 600CM² |
| Oscillation Tube | 8T85RB | 8T25RA |
| Welding Length | ≤ 150 MM | |
| Power Supply | 3P ~ 380V × 50Hz | |
| Working Frequency | 27.12Mhz | |
| Rectifier | Silicon Diode | |
| Drive Mode | Pneumatic | |
| Arc Suppressor | High Sensibility PL–5557 | |
| Suitable Material | PVC or any fabric containing PVC | |
| Cylinder Working Stroke | 150mm (customization offered) | |
| Welding Time | 0–30 S adjustable (customization offered) | |
